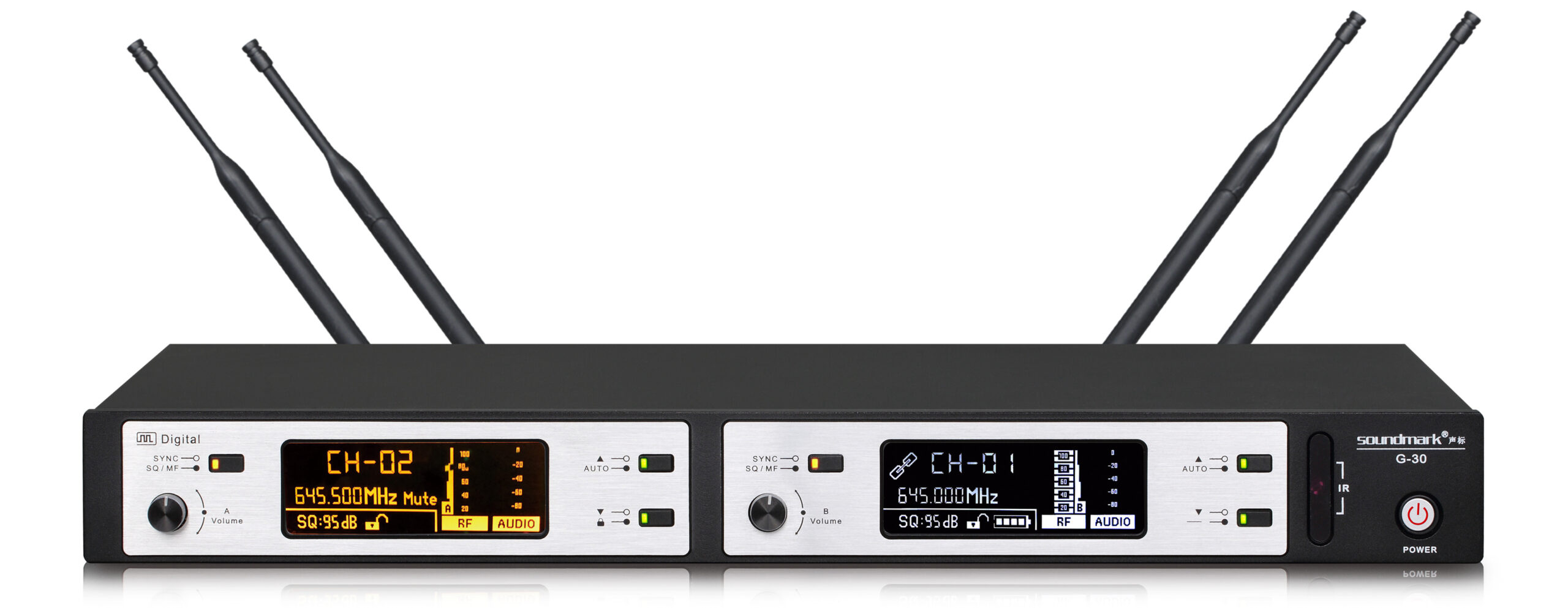

– Chassis Specifications: Standard 1U Chassis
– Number of Channel Groups: Dual Channel
-Carrier frequency band: UHF513-558MHz/615-665MHz/780-820MHz
-Modulation method: FM
-Oscillation mode: PLL phase-locked frequency synthesizer
-Frequency stability: ±0.0005%
-Sensitivity: at an offset equal to 25KHz, When inputting 6dBμV, S/N>60dB
-Maximum offset: ±45kHz
-Bandwidth: 50MHz
-Combined S/N ratio: >108 dB
-Composite T.H.D.: <0.4% @ 1 kHz
-Comprehensive frequency response: 60Hz~18kHz ± 3dB,
-Maximum output voltage: Balanced: -20dBV/100Ω,
-Unbalanced: -4dBV/5KΩ.
-Output socket: XLR balanced and 6.3φ unbalanced socket
-Panel buttons: switch and display handheld and waist pack buttons
-Effective working distance: generally 100 meters (open space)
-Power supply: 100 – 240V AC50/60 Hz, 10W
-Weight: 4.3KG
-Dimensions (mm): 421(L)×43(H)×206(W)

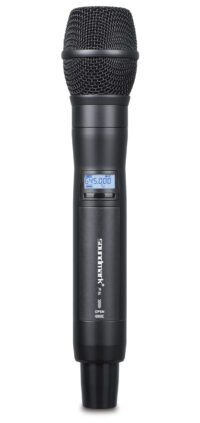

Transmitter Parameters
-Transmitter frequency band: UHF513-558MHz/615-665MHz/780-820MHz
-Oscillation Mode: PLL Phase-Locked Frequency Synthesizer
-Harmonic radiation: < -63dBm
-Bandwidth: 80MHz
-Maximum offset: ± 45KHz
-Power output: 30mW
-Frequency response: 50Hz~18KHz
-Maximum input sound pressure: 130dB SPL
-Sound head: moving coil
-RF power output: 8mW; 8mW/15mW (Selectable)
-Battery: AA×2
-Current consumption: <110 mA
-Battery drain: Almost 6 Hours
-Dimensions (mm): 265mm (length) × 56mm (diameter)
