| Type | 2-way passive curvilinear array element | |
| Enclosure Design | Trapezoidal array enclosure | |
| Power Output (RMS) | 700W (RMS) 1000W (Program) 2400W (Peak) |
|
| Frequency Range | 52Hz – 19,5kHz (-10dB) | |
| Nominal Impedance | MF: 8Ohm HF: 8Ohm |
|
| Transducer Type | 2x 10″ (2.56in VC) MF EU transducer 1.4″ (2.56in VC) Neodymium HF EU transducer |
|
| Dispersion | Horizontal: 100° Vertical: array length-splay dependent |
|
| Crossover Frequency | 1600Hz Bi-amp operation, user selectable |
|
| Max. SPL (peak) | 138dB @ 1m | |
| Connector | 2x Speakon NL4 parallel-connected | |
| Construction | 15mm brich plywood, rugged polyurea coating | |
| Grille | Custom perforated metal grille with acoustic foam | |
| Installation / Rigging / Flying | Integrated rigging flyware Splay angle adjustable, 8° (1° increment) Ø9.8mm ball pins w/ stainless steel lanyard with PVC |
|
| Dimensions (WxDxH) | 740x530x280mm 29.13×20.87×11.02in |
|
| Weight | 29Kg 63.93lb |
Brands, Line Arrays, Moose Audio, Passive Speakers, Speakers

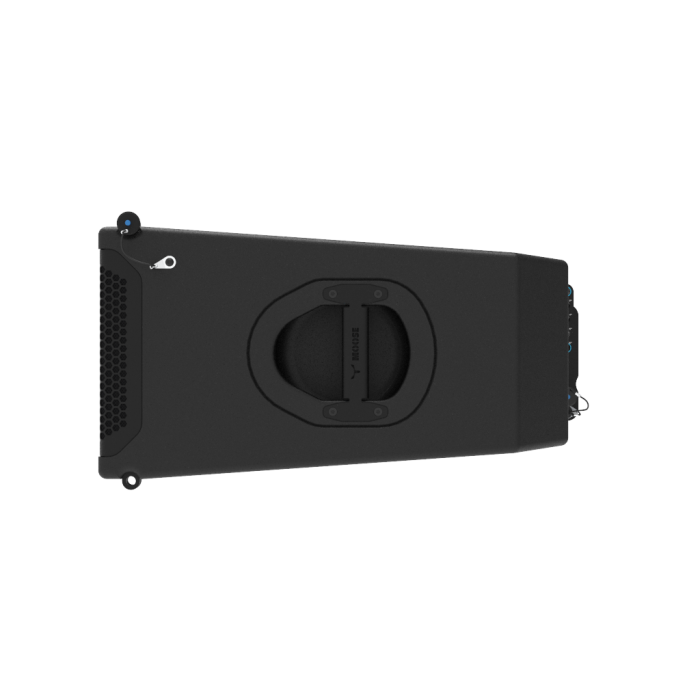

Moose LA21 Array
- Ultra-Compact 2-way curvilinear array module
- Exceptional pattern control due to symmetrical design
- 2x 10” (2.56in VC) MF + 1.4” (2.56in VC) Neodymium HF driver
- 2x NL4 parallel-connected
- Bi-amp operation (1+/1- MF & 2+/2- HF)
- High performance and crystal clear reproduction
- Faithful dynamic response and great range
- Integrated rigging system for ground stacking and flown configurations
- Rugged and durable 15mm birch plywood construction
- Touring sound reinforcement for small and mid-sized venues
